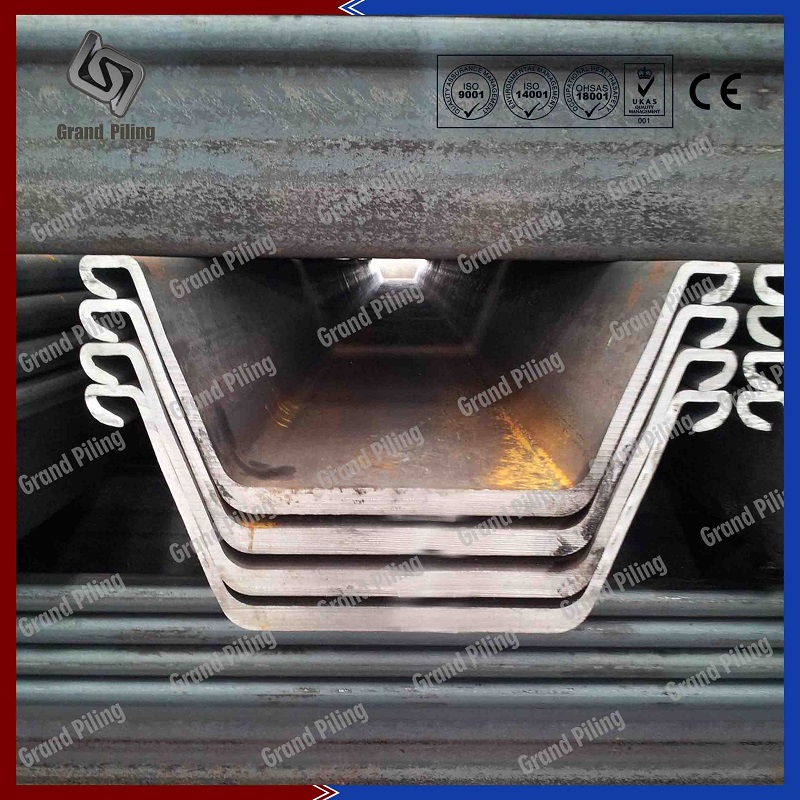

Product Photos


U type sheet piles are U type profiles with interlock at both sides to form the continuous walls,which has center lines in the middle of the double U section wall. U profile sheet piles can stack more stable than any other shapes,so can be used both in permanent and temporary projects. Millions of tons of U-shaped hot rolled sheet piles have been used all over the world for all kind of structures for more than 100 years.U profile sheet pilingwas the tradition, especially in Aisa.



The advantages of U-shaped piles are multiple:

Ø wide range of sections forming several series with various geometrical characteristics, enabling the choice of technically
and economically optimized sections for each specific project. Our regular stock for U type hot rolled sheet piles are over 80,000 tons
Ø combination of great wave depth and high flange thickness leading to excellent statical properties
Ø symmetrical form of single elements resulting in great aptitude for re-use.
Ø possibility of assembling and fixing piles into pairs at the mill providing better installation quality and performance





Asia Type Hot Rolled Sheet Piling Types

Section Dimensions Sectional Area Mass Moment
of inertia
Modulus
of section
Width Height Thickness Pile Wall
w h t
mm Mm mm cm2/pile kg/m kg/m2 cm4/m cm3/m
ⅠA 400 85 8 45.21 35.5 88.8 4500 529
400 100 10.5 61.2 48 120 8740 874
400 125 13 76.4 60 150 16800 1340
ⅢA 400 150 13.1 74.4 58.4 146 22800 1520
400 170 15.5 97 76.1 190 38600 2270
ⅤL 500 200 24.3 133.8 105 210 63000 3150
ⅥL 500 225 27.6 153 120 240 86000 3820
ⅡW 600 130 10.3 78.7 61.8 103 13000 1000
ⅢW 600 180 13.4 104 81.6 136 32400 1800
ⅣW 600 210 18 135.3 106 177 56700 2700

Note: For Asia hot rolled U type sheet pile, most frequently mentioned brand is FSP, NSP, SKSP, JFESP, all mean same sizes.



Hoesch Sheet Pile / Larssen Sheet Pile

Section System
width
Wall
height
Back
thick ness
Web
thick ness
Mass Section
modulus
Moment
of inertia
b h t s Wall Single pile Wall Single pile Wall
mm mm mm mm kg/m2 kg/m Wy
cm3/m
cm3 Iy
cm4/m
LARSSEN 22 500 340 10,0 9,0 123,6 61,8 1260 355 21420
LARSSEN 22/10/10 500 340 10,0 10,0 129,8 64,9 1300 372 22100
LARSSEN 23 500 420 11,5 10,0 155,0 77,5 2000 527 42000
LARSSEN 24 500 420 15,6 10,0 175,0 87,5 2500 547 52500
LARSSEN 24/12 500 420 15,6 12,0 185,4 92,7 2550 560 53610
LARSSEN 25 500 420 20,0 11,5 206,0 103,0 3040 562 63840
LARSSEN 600 600 150 9,5 9,5 94,0 56,4 510 130 3825
LARSSEN 600 K 600 150 10,0 10,0 99,0 59,4 540 133 4050
LARSSEN 601 600 310 7,5 6,4 78,0 46,8 745 251 11520
LARSSEN 602 600 310 8,2 8,0 89,0 53,4 830 265 12870
LARSSEN 603 600 310 9,7 8,2 108,0 64,8 1200 330 18600
LARSSEN 603/10/10 600 310 10,0 10,0 116,0 69,6 1260 350 19530
LARSSEN 603 K 600 310 10,0 9,0 113,5 68,1 1240 340 19220
LARSSEN 604n 600 380 10,0 9,0 123,0 73,8 1600 415 30400
LARSSEN 605 600 420 12,5 9,0 139,2 83,5 2020 520 42420
LARSSEN 605 K 600 420 12,2 10,0 144,5 86,7 2030 537 42630
LARSSEN 606n 600 435 14,4 9,2 157,0 94,2 2500 605 54375
LARSSEN 606n K 600 435 14,4 10,0 162,1 97,3 2530 617 55030
LARSSEN 628 600 456 16,3 9,8 165,5 99,3 2775 586 63270
LARSSEN 607n 600 452 19,0 10,6 190,0 114,0 3200 649 72320
LARSSEN 703 700 400 9,5 8,0 96,4 67,5 1210 414 24200
LARSSEN 703/10/10 700 400 10,0 10,0 108,0 75,6 1340 437 26800
LARSSEN 703 K 700 400 10,0 9,0 103,0 72,1 1300 426 25950
LARSSEN 716 700 440 10,2 9,5 114,2 79,9 1600 511 35200
LARSSEN 720 750 450 12,0 10,0 128,5 96,4 2000 588 45000
LARSSEN 720/14,5/10,0 750 450 14,5 10,0 139,3 104,5 2270 595 51075
LARSSEN 43 500 420 12,0 12,0 166,0 83,0 1660 483 34900
LARSSEN 430 708 750 12,0 12,0 234,5 166,0 6450 4570 241800



European Type Hot Rolled Sheet Piling

Section Dimensions Mass Moment
of inertia
Modulus
of section
Width Height Thickness Per pile Wall
b h t s
mm mm mm mm kg/m kg/m2 cm4/m cm3/m
L600 600 150 9.5 9.5 56.4 94 3825 510
L600K 600 150 10 10 59.4 99 4050 540
L601 600 310 7.5 6.4 46.8 78 11520 745
L602 600 310 8.2 8 53.4 89 12870 830
L603 600 310 9.7 8.2 64.8 108 18600 1200
L603K 600 310 10 9 68.1 113.5 19220 1240
L603 10/10 600 310 10 10 69.6 116 19530 1260
L604 600 380 10 9 73.8 123 30400 1600
L605 600 420 13 9.2 85.5 142.5 43890 2090
L606 600 435 14.4 9.2 94.2 157 54375 2500
L607 600 452 19 10.6 114 190 72320 3200
L703 700 400 9.5 8 67.5 96.4 24200 1210
L716 700 440 10.2 9.5 79.9 114.2 35200 1600
L720 750 450 12 10 96.4 128.5 45000 2000
AU
AU14 750 408 10 8.3 77.9 103.8 28710 1410
AU 16 750 411 11.5 9.3 86.3 115 32850 1600
AU 18 750 441 10.5 9.1 88.5 118 39300 1780
AU 20 750 444 12 10 96.9 129.2 44440 2000
AU 23 750 447 13 9.5 102.1 136.1 50700 2270
AU 25 750 450 14.5 10.2 110.4 147.2 56240 2500
PU
PU 12 600 360 9.8 9 66.1 110.1 21600 1200
PU1210/10 600 360 10 10 69.6 116 22580 1255
PU 18 600 430 11.2 9 76.9 128.2 38650 1800
PU 22 600 450 12.1 9.5 86.1 143.6 49460 2200
PU 28 600 454 15.2 10.1 101.8 169.6 64460 2840
PU 32 600 452 19.5 11 114.1 190.2 72320 3200
GU
G6N 600 309 6 6 41.9 69.9 9670 625
GU7N 600 310 6.5 6.4 44.1 73.5 10450 675
GU7S 600 311 7.2 6.9 46.3 77.1 11540 740
GU8N 600 312 7.5 7.1 48.5 80.9 12010 770
GU8S 600 313 8 7.5 50.8 84.6 12800 820
GU13N 600 418 9 7.4 59.9 99.8 26590 1270
GU14N 600 420 10 8 64.3 107.1 29410 1400
GU15N 600 422 11 8.6 68.7 114.5 32260 1530
GU16N 600 430 10.2 8.4 72.6 121 35950 1670
GU18N 600 430 11.2 9 76.9 128.2 38650 1800
GU20N 600 430 12.2 9.5 81.1 135.2 41320 1920
GU21N 600 450 11.1 9 81.9 136.5 46380 2060
GU22N 600 450 12.1 9.5 86.1 143.6 49460 2200
GU23N 600 450 13.1 10 90.4 150.7 52510 2335
GU16-400 400 290 12.7 9.4 62 154.9 22580 1560
GU18-400 400 292 15 9.7 69.3 173.3 26090 1785



U Type Hot Rolled Sheet Piling

Hot rolled sheet pile is the tradition of steel sheet pile for over 100 years. This planet consumes over 3 million tons of hot rolled sheet piling every year for permanent projects, and over 1 million tons for temporary projects. Also every years, there are million tons of hot rolled sheet piling rusting. So Hot rolled sheet pile is a big business, only after H beams. A decade ago, all hot rolled sheet piles were produced in Europe, Japan, UK, USA, etc developed countries. And were called Larssen sheet piles. Now China hot rolled sheet pile start to pour into the market. On the market, there are only several famous names which all sheet piling contractors can name: AZ sheet pile, AU sheet pile, PU sheet pile, GU sheet pile, FSP sheet pile, PZ sheet pile, PZC sheet pile, ASTM sheet pile, Larssen sheet pile, Hoesch sheet pile etc. The most important index for steel sheet piles is modulus of section. When hot rolled steel sheet piling from different supplier or manufacturer has similar modulus of section, then these sections can replace each other. Thickness and steel grade is also important for steel sheet piling, because the thick the steel is, the profiles can be driven into ground more easily and the service life can be longer. Different steel grade has different corrosion rates, also in different soil conditions, like in polluted or very polluted soils, fresh or salt water, all different. A corrosion rate chart can be obtained easily from China sheet pile.

 Hot rolled steel sheet pile forms its shape from the molten iron. The usual finish is mill finish, which is light scale on small stuff and heavy scale on thick stuff. With interlocks at both ends, more sections form a continuous sheet piling wall, which is a rigid barrier for earth and water, resisting the lateral pressures. Sheet pile wall provide excellent resistances to bending forces and structural strength to deep foundation. The shape of the section or profile determines the structural strength. China sheet pile can be installed with vibratory hammer, piling rig or drivers, depending on the soils and length and thickness of the profiles.

 Due to costs considerations, mills or sellers all require a minimum quantity to rolling. Minimum several thousand tons for one rolling (Mills might collect orders of several hundred tons, then until total amount reach their required quantity, they start rolling).There are also different steel grades in different markets: China sheet pile is normally in SY295 SY390. Japan and Korea sheet piles same with China sheet piling. Sheet pile Australia and sheet piling UK are normally S240 GP  S355 GP S430 GP etc. Arcelor also have marine grade S460AP for marine usages. In USA, steel grades are ASTM A572 grade 50, grade 60, grade 65 A588 and A690 marine grade sheet piles. Steel sheet piling can be classified into two applications: Temporary and permanent. Permanent steel sheet piles will remain in the ground until contractors think they need to rebuild the projects. It will stay in the places and remain in ground. China sheet piling temporary applications only provide access and safety for constructions in a limited are. After the construction is finished, China sheet piles will be extracted or pulled off and maybe re-sell as second hand steel sheet piles.A big stock of hot rolled sheet piles are here. All profiles can be used as combined walls and available in different steel grades.

U type hot rolled sheet piles can be supplied in single pile, double piles, or triple piles. Double piles and triple piles are normally supplied as crimped sheet piles. Threaded doubles piles are recommended for facilitating the installation process. Single piles might bend around the weak axis under driving. While crimping steel sheet piles are more easy to drive and extracted.

China sheet piling can also supply bent piles. Maximum bending angle is 25 degree. U piles are bent in the middle of the web. Corner sections are needed in almost every in every projects, most widely used sections are C9 corner sections, C14 corner piles. Delta 13 corner piles, Omega 18 clutches. C9 corner piles and C14 corner sections are normally used with tubular combined walls. Special pile or Junction piles are also available upon request.

U type steel sheet pile can also form box piles. Two U type sheet piles form double U box pile, for example CAU double box piles, CU double box piles, CPU-R double box sheet pile, CGU double box sheet pile. Three U type sheet piles form triple U box piles, for example CAU triple box sheet pile, CU triple box piles, CPU-R box piles. Four U type sheet piling form quadruple box piles.
