Product Photos

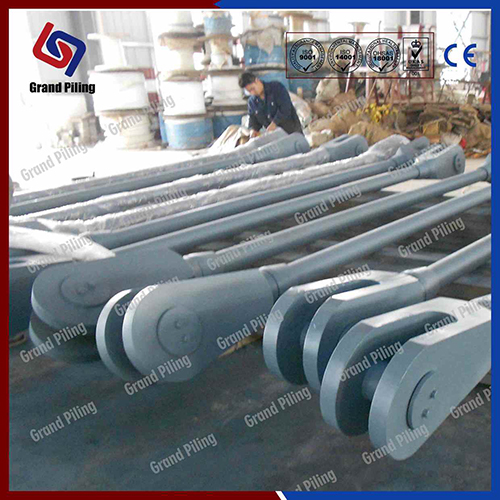

Steel Tie Rod

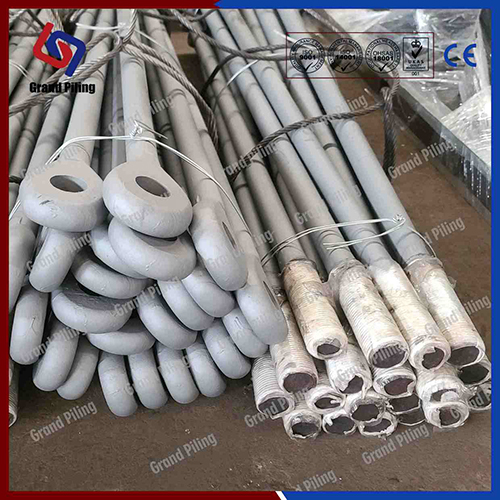

Steel Tie Rod

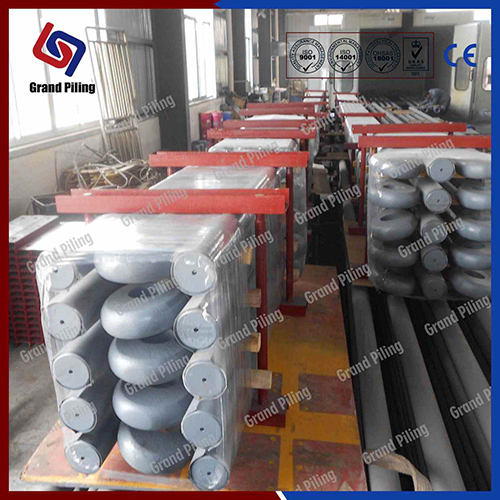

Steel Tie Rod

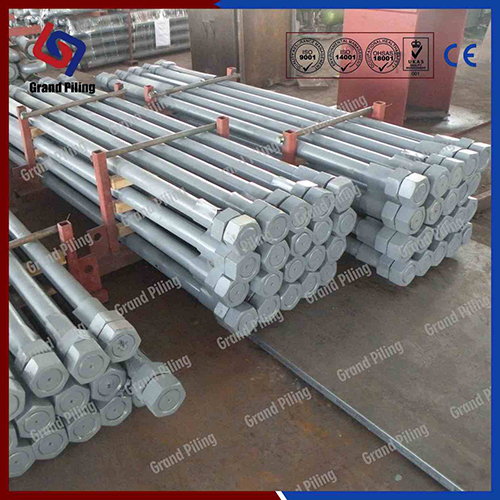

Steel Tie Rod

Steel Tie Rod Introduction:

Steel tie rods are also called marine tie rods, which are used to tie back or tie down the main quay wall in sheet piling projects. Tie rod systems are also know as deadman anchors,the most economical sheet piling tie back and anchor.Steel tie rods are manufactured from two forms:round steel tension bars and tie bars with upset forged ends.The thread is either cut or rolled onto the tieback anhors.We  can produce the most comprehensive tie rod system in the world.Marine tie rods diameter from 20mm to over 300mm.Tension bar steel grade from S235 S460 up to S1030(minimum yield strength 1030Mpa).Tie bar quantity from 2500 tons in Paksitan Qasim port project,to only 3 pieces in UK poole combiwall system,there is no order too big or too small for us. We can supply tie rods with our sheet piling,pipe pile in a package,we are also pleased to supply tie rod only(By calcuation of anchor force,distance between two adjacent tie rods,angles,soil conditions etc,our engineers team will design the most proper marine tie rod to suit your project)
Our factory is the exclusive combination of designing, manufacturing, testing of sheet pile tie rods in China.With 4 professional product lines namely forging product line, heat treatment line, machine-work line and surface treatment line, our annual production capacity exceeding 35 thousands tons There are also many advanced equipments in the product line such as 15m ultra-long electric heating mantles,15m large-sized ball blast machines, automatic numerical control machines, and 2500t,2000t,1000t,500t forging machines designed and manufactured by ourselvs.



Steel tie rod applications
Tie rod systems can be used for marine and geotechnical applications like coffer dam, sheet pile wall and retaining walls. Retaining load is transferred from wall through waling and tie rod, dead man or pressure grouted anchorage into the ground. The load of tie rods and tie backs may be transferred through a dead man or pressure-grouted anchor into the surrounding ground. For pressure-grouted anchorages the minimum load transfer length can be presumed to equal the bond length along the drill hole surface.



U and Z type sheet piling wall

High modulus wall

Concrete wall

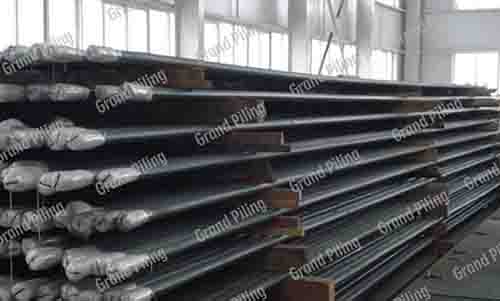

Production process:



Material Cutting

Upset ends forging

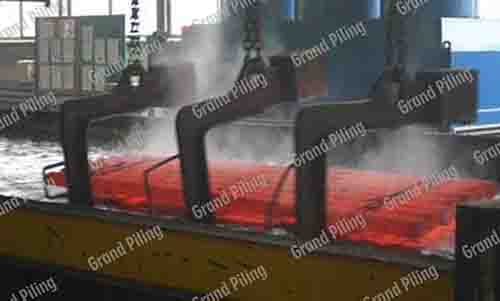

Heat Treatment

Straightness Adjustment



Sand Blasting&Painting

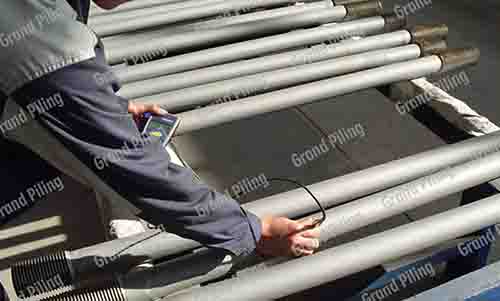

Finish Products Inspection



Steel Tie Rod Dimensions

Thread Size ΦD (mm) Weight (kg/m) Grade 460 Grade 500 Grade 550 Grade 650 Grade 700
YL(Kn) UL(Kn) YL(Kn) UL(Kn) YL(Kn) UL(Kn) YL(Kn) UL(Kn) YL(Kn) UL(Kn)
M48x5 40 9.86 578 767 628 817 691 942 817 1068 880 1106
M56x5.5 45 12.48 732 970 795 1034 875 1193 1034 1352 1113 1400
M60x5.5 50 15.41 903 1198 982 1276 1080 1473 1276 1669 1374 1728
M68x6 55 18.65 1093 1449 1188 1544 1307 1782 1544 2019 1663 2091
M72x6 60 22.2 1301 1725 1414 1838 1555 2121 1838 2403 1979 2488
M76x6 65 26.05 1526 2024 1659 2157 1825 2489 2157 2821 2323 2920
M85x6 70 30.21 1770 2348 1924 2501 2117 2886 2501 3271 2694 3387
M90x6 75 34.68 2032 2695 2209 2872 2430 3313 2872 3755 3093 3888
M95x6 80 39.46 2312 3066 2513 3267 2765 3770 3267 4273 3519 4423
M100x6 85 44.54 2610 3461 2837 3688 3121 4256 3688 4823 3972 4994
M105x6 90 49.94 2926 3881 3181 4235 3499 4771 4135 5407 4453 5598
M110x6 95 55.64 3261 4324 3544 4607 3899 5316 4607 6025 4962 6238
M115x6 100 61.65 3613 4791 3927 5105 4320 5890 5105 6676 5498 6912
M125x10 105 67.97 3983 5282 4330 5628 4762 6494 5628 7360 6061 7620
M135x10 115 81.54 4778 6336 5193 6751 5713 7790 6751 8829 7271 9140
M140x10 120 88.78 5202 6899 5655 7351 6220 4882 7351 9613 7917 9953
M150x12 125 96.33 5645 7486 6136 7977 6750 9204 7977 10431 8590 10799

Note: This table is only part of our sizes.We have over 1000 different sizes. We can adjust our machine to produce in any sizes. Please contact us if your size is not in above table.

Downloads:

Steel Tie Rod Brochure

Our Latest Brochure

P1-5:Introduction P6-7:Tie rod application
P8-9:Tie rod production P10-11:Tie rod sizes
P12-13:Connecting parts P14:Classification
P15:Steel grade P16-17:Anti-corrosion paint
P18-19:Wailing P20-27:Global projects



Download in Different Language

Global Projects

East Siberia- Pacific Ocean, Russia
East Siberia- Pacific Ocean, Russia
Dock construction Hedland port, Australia
Dock construction Hedland port, Australia
Hudong-Zhonghua Shipping Goup China
Hudong-Zhonghua Shipping Goup China
Wharf Port Moresby PNG
Wharf Port Moresby PNG
