OZ Steel Sheet Piles

The interlocks on OZ steel sheet piles are situated on the neutral axis, and are used for a diverse range of applications and driving conditions, including includes stiff, narrow sections suitable for hard driving conditions, and wider more efficient sections for applications. It is important that designers and contractors understand the effect of shear transmission on the design capacity. In Australia, New Zealand, clients can always find our stocks.

Construction of OZ sheet piling shows the following characteristics:
(1) The construction is simple and has no need of large-sized construction equipment;
(2) Rapid construction is possible; if that is the case, the construction period would be remarkably reduced;
(3) The section and length of cold formed sheet piling can be changed according to foundation status, and this provides a possibility of high-efficiency and economical design;
(4) The relatively light wall body that is different from stand-alone type structure is highly conducive to aseismatic design.
Thanks to the above-noted advantages of cold formed sheet piling, it has been widely used for waterfront construction project, bank-protection works and temporary works etc with lower sheet piling prices.

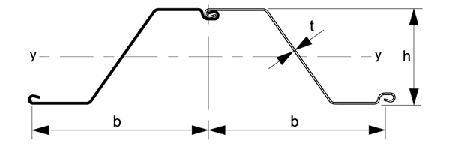

Section Width Height Thickness Sectional
Area
Mass Section
Modulus
Moment of
Inertia
B mm H mm T mm cm2/m kg/m Single
Pile
kg/m2 of
Wall
cm3/m cm4/m
0Z Sections
0Z13A 675 392 6.5 104.7 55.5 82.2 1370 27251
0Z14A 675 392 7.0 112.7 59.7 88.5 1470 29281
0Z15A 675 392 7.5 120.7 64.0 94.8 1570 31325
0Z16A 675 392 8.0 128.7 68.2 101.1 1670 33350
0Z17A 685 392 8.5 134.5 72.3 105.6 1780 35558
0Z18A 685 392 9.0 142.5 76.6 111.8 1880 37580
0Z19A 685 392 9.5 150.2 80.8 118.0 1970 39595
0Z20A 685 392 10.0 158.2 85.1 124.2 2070 41601
0Z20 650 429 8.0 138.8 70.8 108.8 1980 43293
0Z21 650 429 8.5 147.1 75.1 115.5 2100 45912
0Z22 650 429 9.0 155.5 79.4 122.1 2220 48521
0Z23A 650 429 9.5 163.8 83.6 128.6 2330 51120
0Z24A 650 429 10.0 172.3 87.9 135.2 2450 53709
0Z26 675 429 10.5 181.0 95.9 142.1 2620 57410
0Z27 675 429 11.0 188.3 99.8 147.9 2730 60043
0Z28A 675 429 11.5 197.0 104.4 154.6 2850 62667
0Z29A 675 429 12.0 205.5 108.9 161.3 2960 65281
0Z31A 675 429 12.7 217.5 115.2 170.7 3120 68927
0Z32 675 476 11.0 204.4 108.3 160.5 3180 77367
0Z33 675 476 11.5 213.3 113.1 167.5 3320 80750
0Z34A 675 476 12.0 222.4 117.8 174.6 3450 84121
0Z36 675 476 12.5 231.3 122.5 181.5 3580 87473
0Z37 675 476 13.0 240.1 127.3 188.5 3720 90830
0Z38A 675 476 13.5 249.0 132.0 195.5 3850 94167
0Z40 675 476 14.0 257.9 136.6 202.4 3980 97493
